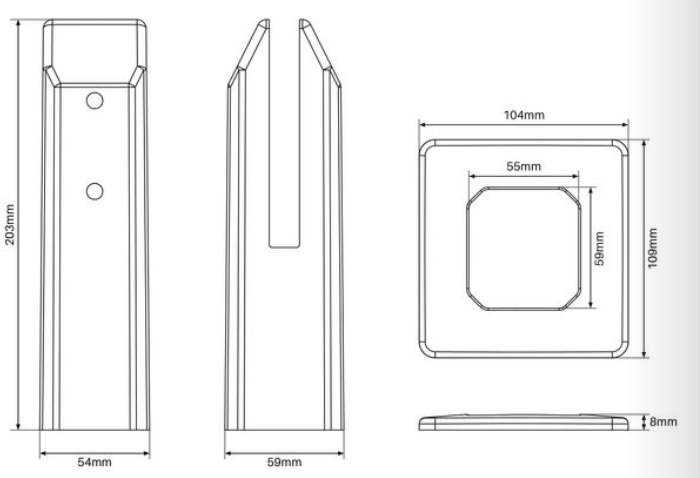

Spigot Insulator

1 x SPIGOT INSULATOR
1 x 2-PART DOMICAL COVER
2 x FRICTION SCREW COVERS

Silver is to suit polish and satin spigots

• Made from ASA thermoplastic - excellent weather & chemical resistance and high impact strength
• Non-conductive material
• Includes 1x vertical spigot stem & 2-part
domical cover
• Also includes 2x caps which fit into
friction grub screw holes to reduce any
chance of spigot insulator lifting
• Firstly install vertical stem to spigot. Fix
off base plate with countersunk fixings to
substrate. Install 2 part domical cover.
• Can be retro-fitted to existing base plated
Madrid spigots
• Specially designed top section prevents
chance of pulling insulating cover away
from spigot & base plate
