Wall to Glass Hinge

Regular price
$52.00
Sale price
$52.00
Regular price
Sold out
Unit price
per
Tax included.

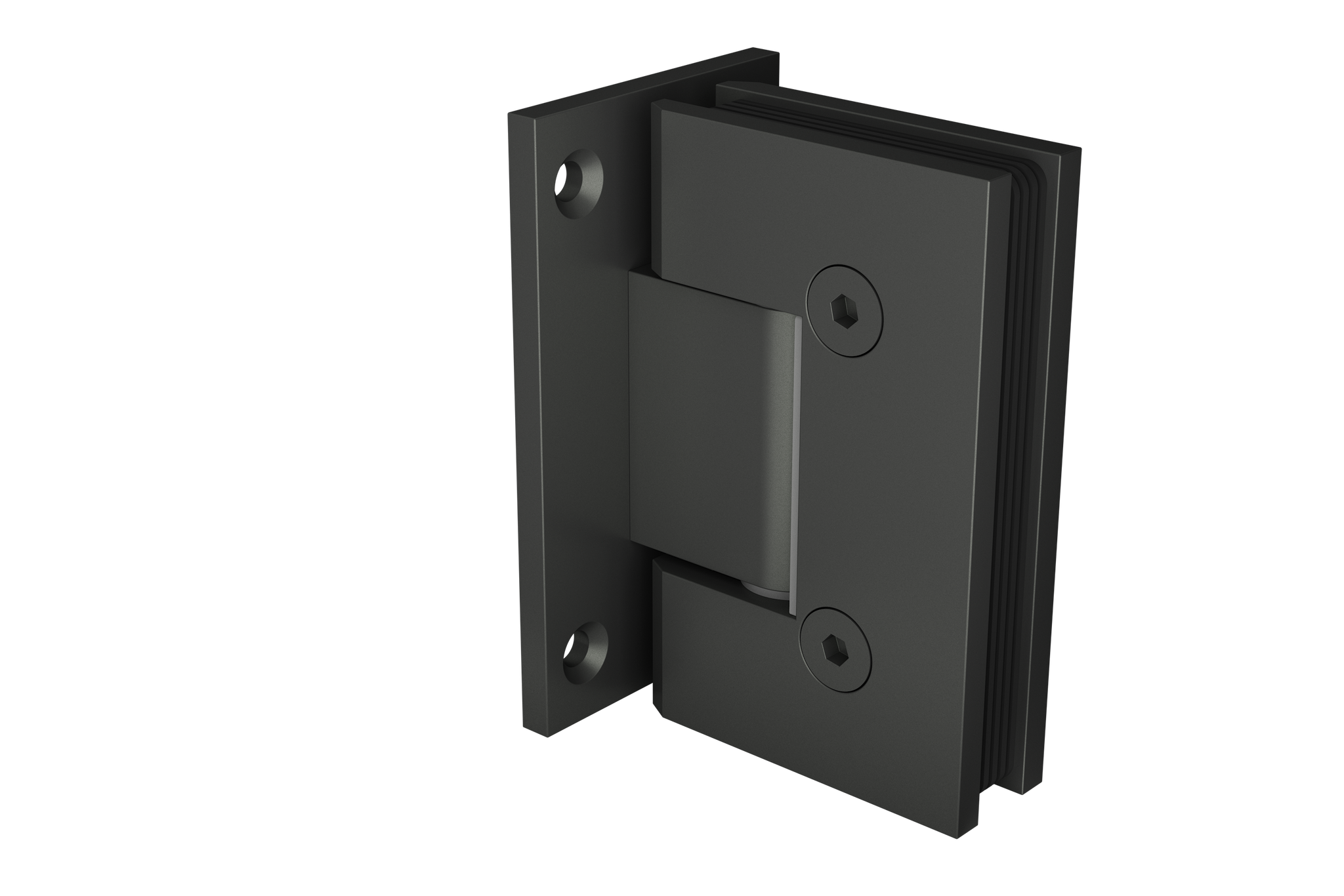

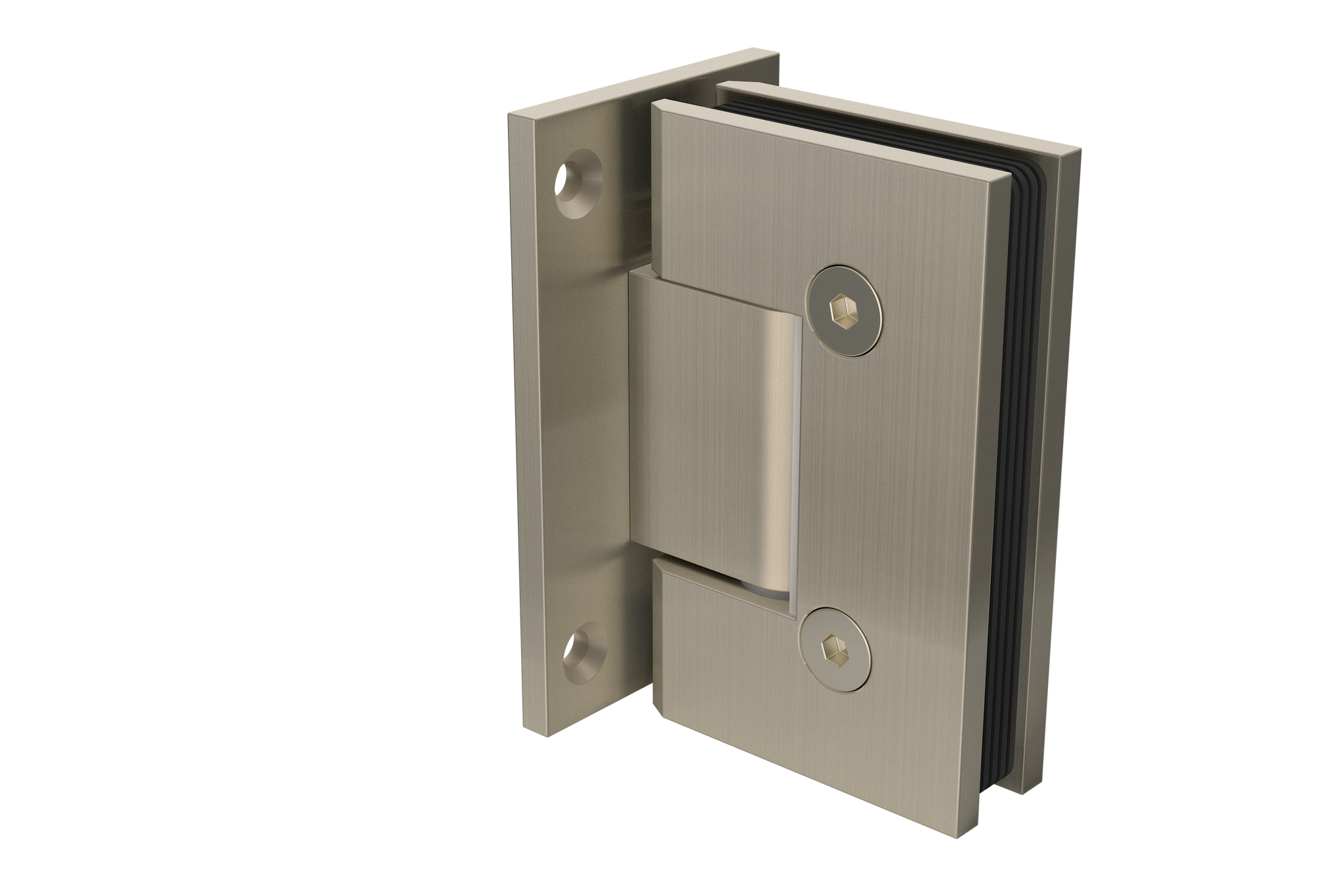

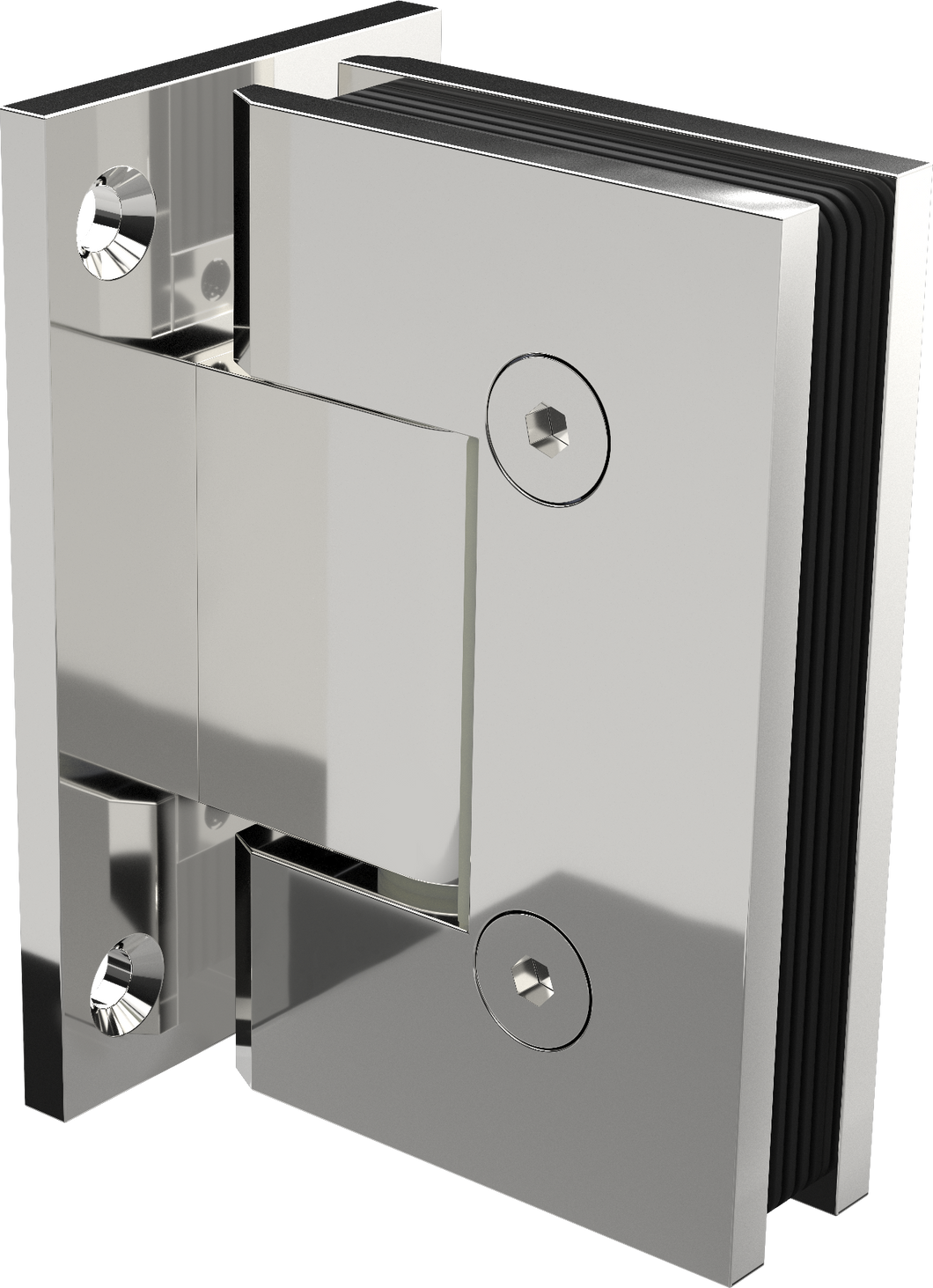

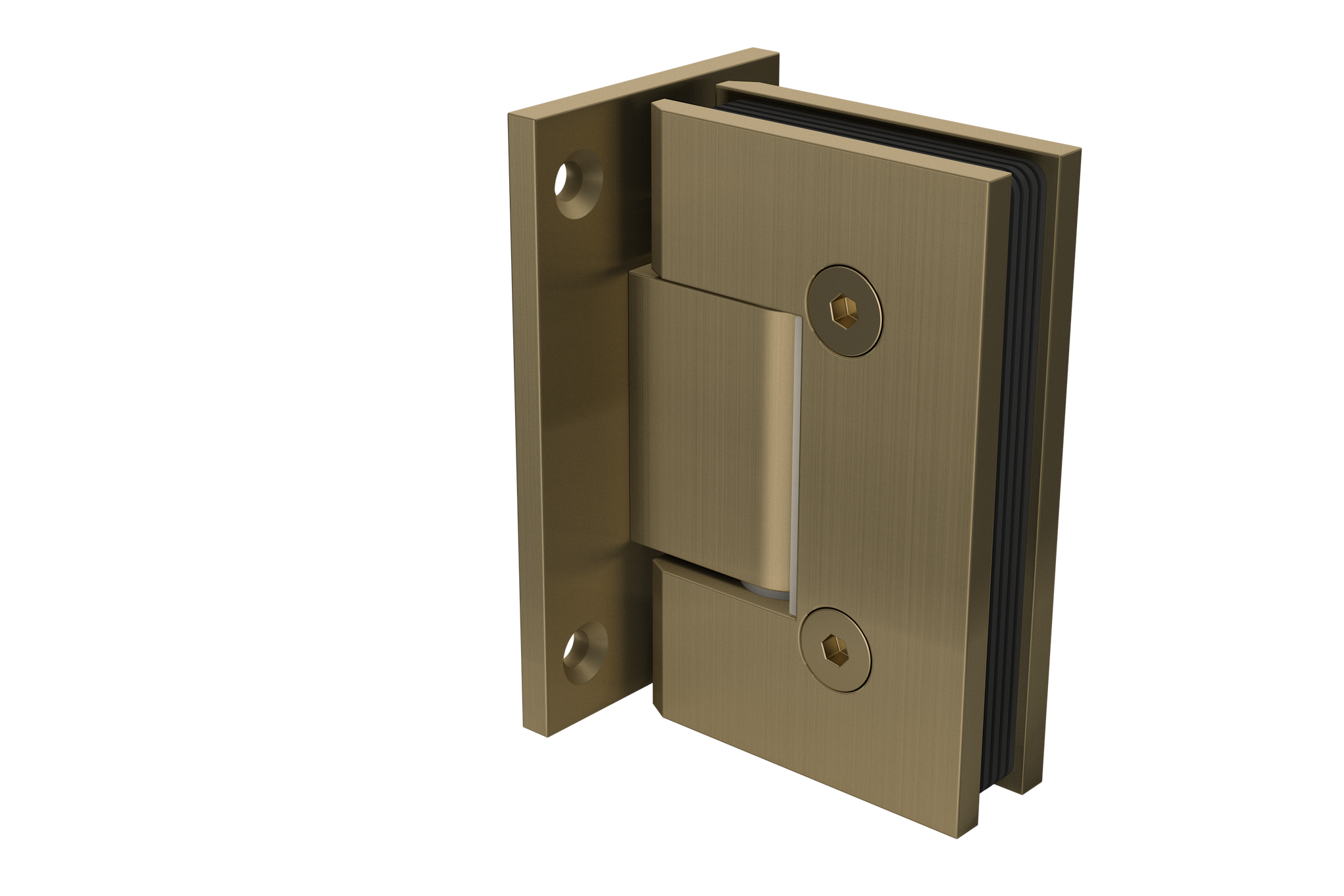

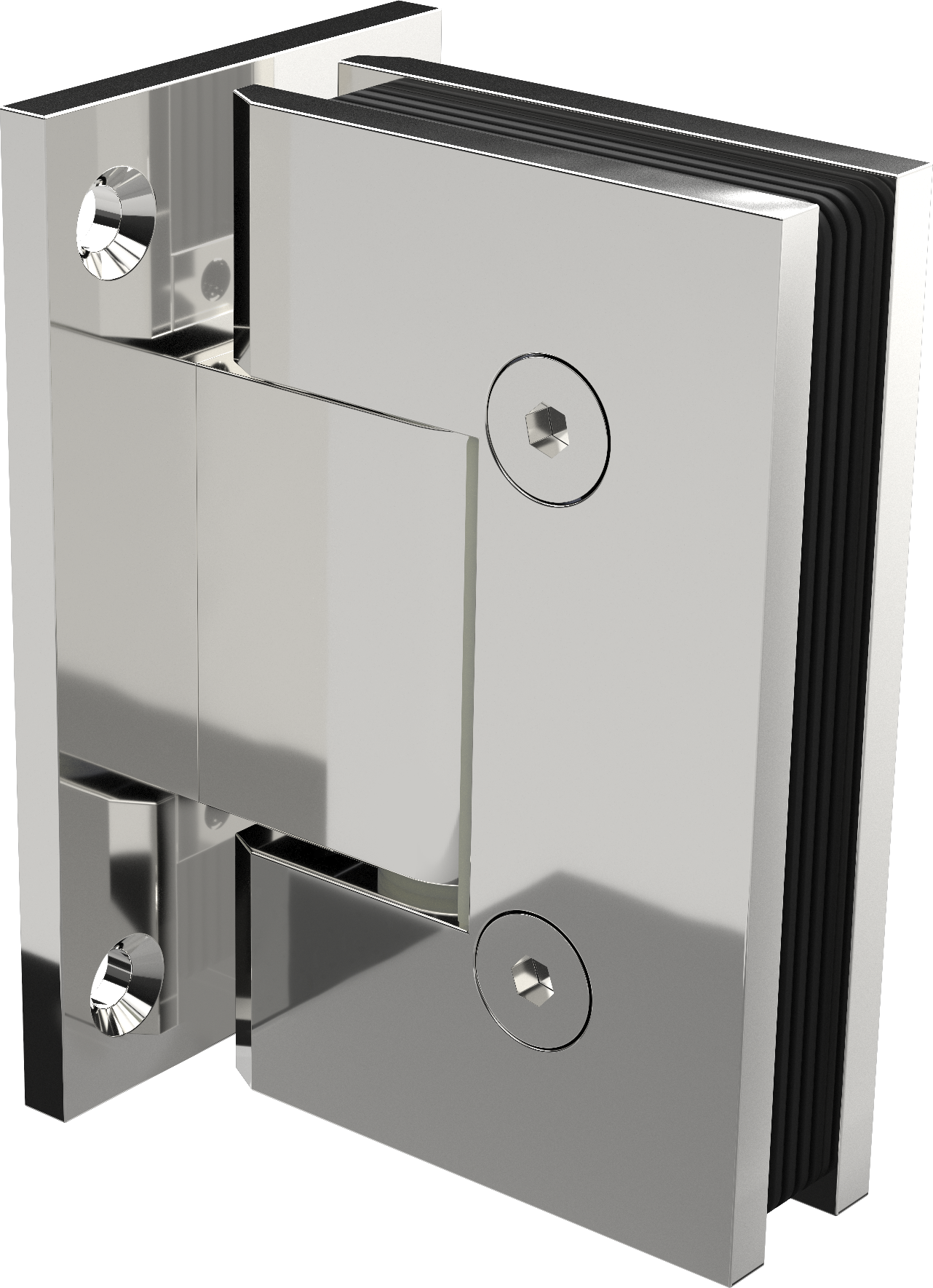

Wall to glass hinge

  • Offset wall plate with 4x fixing holes - Square finished edges
  • Suitable for 8mm & 10mm glass
  • “D” style glass cutouts
  • Self closing from 25 degrees
  • Dual action - opens inwards and outwards
  • Brass centre block with solid precision clamping plates
  • Special tempered SS304 square spring coil. Provides consistent long lasting opening and closing function
  • 4x fixing screws, allen key & gaskets included
  • Specially designed strong clamping plate with pre-glued EPDM gasket

***Price is for one hinge

***Max door weight 35kg per pair

***Max door width 800mm
